CLARK MASTS TEKSAM PORTABLE
FIELD MOUNTED MASTS


 LIGHT-WEIGHT FIELD MOUNTED PORTABLE MAST KITS WITH ATTACHED TRIPODS FOR DIRECTIONAL OR OMNI-DIRECTIONAL HEADLOADS
-
HANDPUMP OR MANUALLY ERECTED UP TO 12 METRES -
- HEADLOADS UP TO 20 KILOGRAMS -

- ROTATABLE AND NON-ROTATABLE VERSIONS AVAILABLE -

 FT SERIES TRIPOD MASTS
HANDPUMP OR MANUALLY EXTENDED VERSIONS AVAILABLE

Clark Masts FT Series masts are typically field mountable masts derived from the well-known Clark Masts QT series. Easy and quick to deploy with a built-in handpump, or simple manual extension and supported by three foldable legs which are permanently attached to the mast base tube. All FT Series masts use a rugged 76 mm (3") base tube and extended heights from 3.25 to 11.6 metres are available. All FT masts are designed to be used in a guyed configuration and are generally rate to a wind speed of 128 km/h when guyed.
 FT Series PDF Brochure

Clark Masts FT Mast - Field Deployed


Clark Masts FT Series Mast - Manually Extended

GENERAL FEATURES OF CLARK MASTS FT SERIES MASTS

1. Aluminium alloy mast sections

2. Handpump or Manual mast extension

3. Field mounting base which spikes
for attachment to the ground

4. Leg Clamp for adjusting length of mast
legs

5. Air-release screw for handpump
mast retraction

6. Mast section clamping screws

7. Guy Collar for easy guy attachment

8. Base Tube and Guy Collar allow
mast to be turned

9. Quick Clamp for easy attachment
of headload

10. Air cushion retraction on both
types of mast

Clark Masts FT Series Mast Details


Shown Below are specifications for Clark Masts Standard
FT Field Mast Range of Rotatable and Non-Rotatable
Telescopic Mast Models

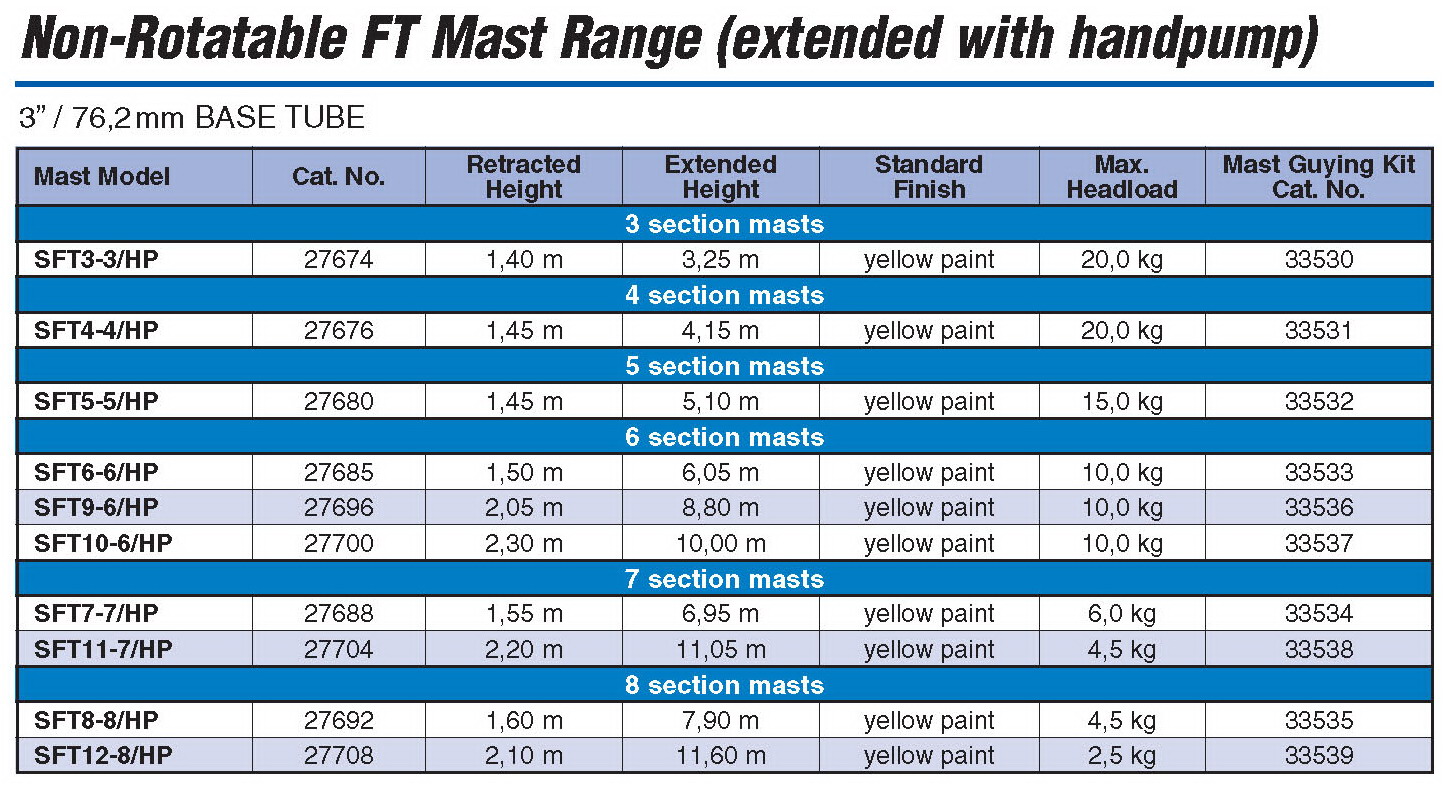

Non-Rotatable FT Mast Range (Handpump Extended)

3"/76.2 mm Base Tube Diameter

Mast Model Part # Retracted
Height
Extended
Height
Standard
Finish
Maximum
Headload
Wind
Rating
Mast
Weight
Guy Kit
Part #
Guy Kit
Weight

3 Section Masts

SFT3-3/HP 27674 1.40 m 3.25 m Yellow Paint 20 kg 128 km/h 21 kg 33530 9 kg

4 Section Masts

SFT4-4/HP 27676 1.45 m 4.15 m Yellow Paint 20 kg 128 km/h 22 kg 33531 9 kg

5 Section Masts

SFT5-5/HP 27680 1.45 m 5.10 m Yellow Paint 15 kg 128 km/h 23 kg 33532 9 kg

6 Section Masts

SFT6-6/HP 27685 1.50 m 6.05 m Yellow Paint 10 kg 128 km/h 24 kg 33533 10 kg
SFT9-6/HP 27696 2.05 m 8.80 m Yellow Paint 10 kg 120 km/h 28 kg 33536 13 kg
SFT10-6/HP 27700 2.30 m 10.00 m Yellow Paint 10 kg 120 km/h 29 kg 33537 14 kg

7 Section Masts

SFT7-7/HP 27688 1.55 m 6.95 m Yellow Paint 6.0 kg 128 km/h 24.5 kg 33534 10 kg
SFT11-7/HP  27704 2.20 m 11.05 m Yellow Paint 4.5 kg 110 km/h 30 kg 33538 15 kg

8 Section Masts

SFT8-8/HP 27692 1.60 m 7.90 m Yellow Paint 4.5 kg 128 km/h 25 kg 33535 10 kg
SFT12-8/HP 27708 2.10 m 11.60 m Yellow Paint 2.5 kg 110 km/h 30 kg 33539 16 kg

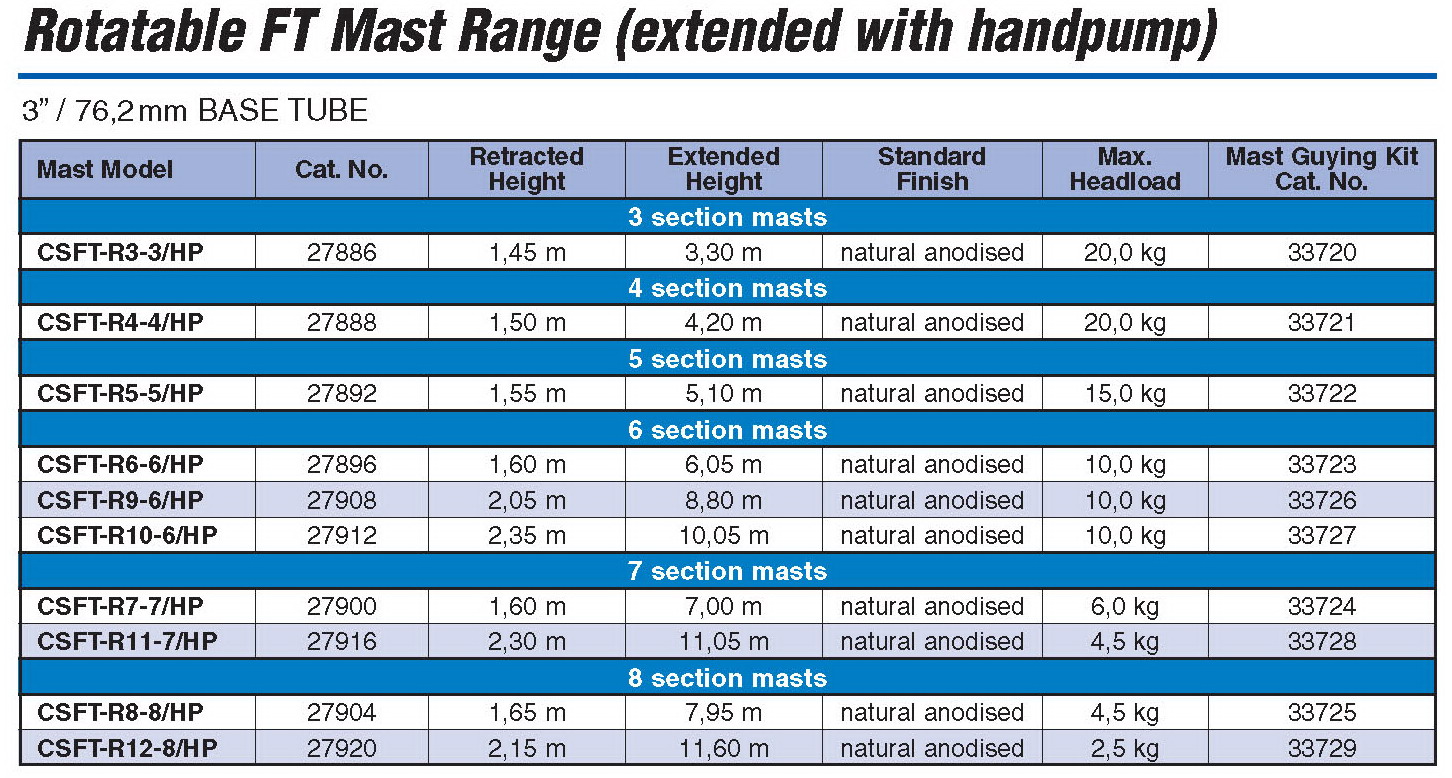

Rotatable FT Mast Range (Handpump Extended)

3"/76.2 mm Base Tube Diameter

Mast Model Part # Retracted
Height
Extended
Height
Standard
Finish
Maximum
Headload
Wind
Rating
Mast
Weight
Guy Kit
Part #
Guy Kit
Weight

3 Section Masts

CSFT-R3-3/HP 27886 1.45 m 3.30 m Clear Anodised 20 kg 128 km/h 21 kg 33520 9 kg

4 Section Masts

CSFT-R4-4/HP 27888 1.50 m 4.20 m Clear Anodised 20 kg 128 km/h 22 kg 33521 9 kg

5 Section Masts

CSFT-R5-5/HP 27892 1.55 m 5.10 m Clear Anodised 15 kg 128 km/h 23 kg 33522 9 kg

6 Section Masts

CSFT-R6-6/HP 27896 1.60 m 6.05 m Clear Anodised 10 kg 128 km/h 24 kg 33523 10 kg
CSFT-R9-6/HP 27908 2.10 m 8.80 m Clear Anodised 10 kg 120 km/h 28 kg 33526 13 kg
CSFT-R10-6/HP 27912 2.35 m 10.05 m Clear Anodised 10 kg 120 km/h 29 kg 33527 14 kg

7 Section Masts

CSFT-R7-7/HP 27900 1.60 m 7.00 m Clear Anodised 6.0 kg 128 km/h 24.5 kg 33524 10 kg
CSFT-R11-7/HP 27916 2.30 m 11.05 m Clear Anodised 4.5 kg 110 km/h 30 kg 33528 15 kg

8 Section Masts

SFT-R8-8/HP 27904 1.65 m 7.95 m Clear Anodised 4.5 kg 128 km/h 25 kg 33525 10 kg
SFT-R12-8/HP 27920 2.15 m 11.60 m Clear Anodised 2.5 kg 110 km/h 30 kg 33529 16 kg

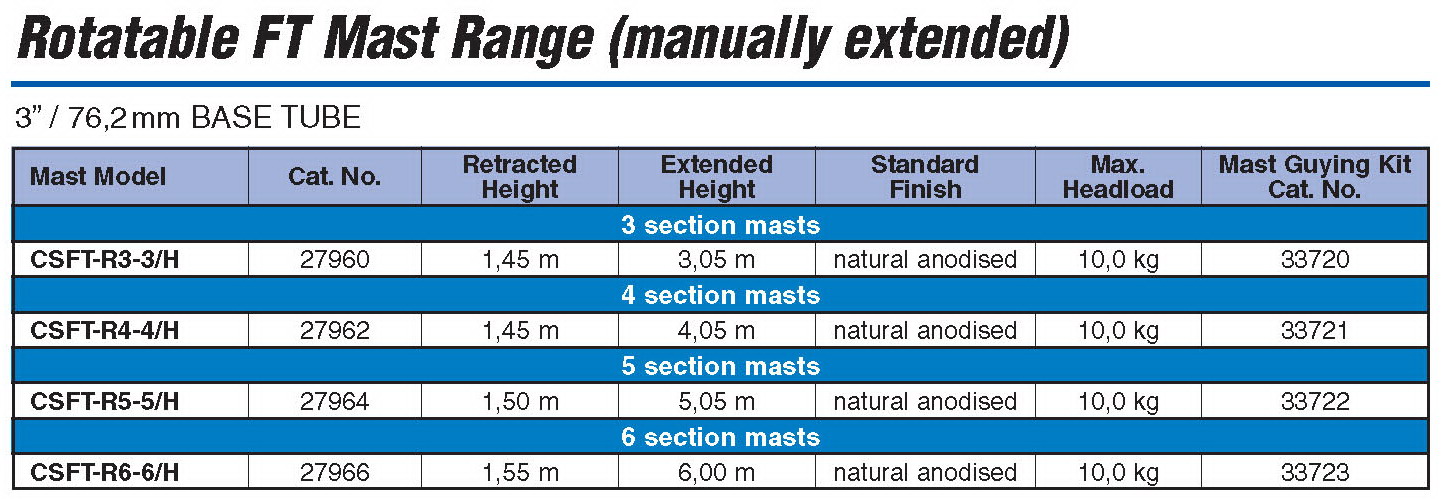

Rotatable FT Mast Range (Manually Extended)

3"/76.2 mm Base Tube Diameter

Mast Model Part # Retracted
Height
Extended
Height
Standard
Finish
Maximum
Headload
Wind
Rating
Mast
Weight
Guy Kit
Part #
Guy Kit
Weight

3 Section Masts

CSFT-R3-3/H 27960 1.45 m 3.05 m Clear Anodised 10 kg 128 km/h 18 kg 33520 9 kg

4 Section Masts

CSFT-R4-4/H 27962 1.45 m 4.05 m Clear Anodised 10 kg 128 km/h 19 kg 33521 9 kg

5 Section Masts

CSFT-R5-5/H 27964 1.50 m 5.05 m Clear Anodised 10kg 128 km/h 20 kg 33522 9 kg

6 Section Masts

CSFT-R6-6/H 27966 1.55 m 6.00 m Clear Anodised 10 kg 128 km/h 21 kg 33523 10 kg



Clark Masts FT Masts Mounting/Guying Accessory Kits

Clark Masts FT Mast - Kit.
CLARK MASTS FT SERIES MAST GUYING KITS
A mast guying kit is available and recommended for all Clark Masts FT Series Field Masts. The Guying Kit consists of Spikes (for the mast base), Canvas mast head Weather Cover, Guy Pickets, Radius Line (for spacing guy pickets), Top Guy Assemblies (x3), Picket Hammer and Accessory Carrying Bag.



Clark Masts FT Series Mast Carrying Bags
FT masts are also available with and optional Mast Carrying Bag to simplify transport and for protection of the
stored FT mast

FT Mast Series - Table of Carrying Bag Details - for Handpump Non-rotatable Masts FT Mast Series - Table of Carrying Bag Details - for Handpump Rotatable Masts FT Mast Series - Table of Carrying Bag Details - for Manual Rotatable Masts

 FT Series PDF Brochure
PDF Brochure on FT RM Series Tripod masts.
